BWSP-180 Slurry Separation Plant is designed and manufactured for Herrenknecht AVN1200XC Tunnel Boring Machine ( shield outer diameter 1505mm ).This capacity is up to 180m³/h. the cut point is 20um. Equipment components: 1 Unit Shale Shaker, with Coarse sieving & Fine sieving shaker screen; 1 Unit 18” Desander Cyclone; 6 Unit 4” Desilter Cyclones; 1 Unit Slurry Pump, supplying slurry for desander cyclone; 1 Unit Centrifugal Pump, supplying slurry for desilter cyclones.
In the design ideas, Brightway pay more attention to personal safety, energy - efficient, environmental protection. BWSP180 Slurry Separation Plant has good processing capacity in the project of tunneling. Know More: BWSP180 Slurry Separation Plant Application and Case

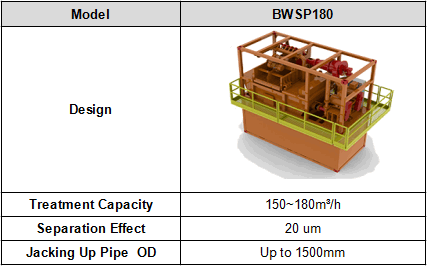

BWSP-180 Slurry Separation Plant Parameter
BWSP-180 Slurry Separation Plant Advantages
1.
Compact Structure: compact structure design, convenient for shipment, available for shipment with 1 unit 40ft container and 1 unit 20th container;
2.
Personal Safety: designed with walkways, guidelines, ladders, cleaning gate, flanges, and valves for staff safe, humanization, user-friendly, and convenient operation.
3. Adaptable to different kinds of Herrenknecht AVN series tunneling machines.
Brightway Separation Plant Features
Brightway separation plants are adapted to the requirements of the tunnelling process and separate the slurry suspension completely from the solid particles consisting of gravel, stone and sand in various grain sizes. Optimized for the treatment of microtunnelling slurries and tunneling slurries.
1. Powerful G-forces with double-deck shakers; efficient and stable separation;
2. Well-designed cyclones for a better fine-cut even under difficult conditions, Powerful performance；
3. Field-proven screen system-durable and adjustable; capable of handling high solids loads;
4. Modular design, easy setup and operation; ensures high speed and low costs for assembling and dismantling;
Brightway can also supply Separation Plant with larger flow rate for other Herrenknecht AVN series tunneling machines as following:
BWSP250 for tunneling machine with outer diameter 2000mm ( Capacity: 250m³/h )
BWSP360 for tunneling machine with outer diameter 2500mm ( Capacity: 360m³/h )
BWSP400 for tunneling machine with outer diameter 2500mm ( Capacity: 400m³/h )
BWSP500 for tunneling machine with outer diameter 4200mm ( Capacity: 500m³/h )
BWSP1000 for tunneling machine with outer diameter 6000mm ( Capacity: 1000m³/h )
BWSP1500 for tunneling machine with outer diameter 10000mm ( Capacity: 1500m³/h )
