BWHDD500 series Mud Recycling System is composed of BWZS103 shale shaker, BWZJ1S8N mud cleaner,centrifugal pumps,mud tank, jet mud mixer and other auxiliary equipment. the system is designed for the 250-350 tons horizontal directional drilling rig and can match the 2000-2500L/min mud pump in trenchless projects. The design capacity is 120m³/h (500GPM). Know More: BWHD-500 Mud Recycling System Application and Case

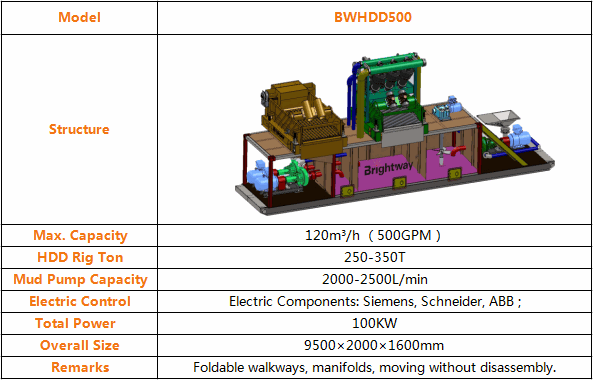

BWHDD500 Mud Recycling System Parameter
BWHDD500 Mud Recycling System Structure
1. Combination of screening, desanding and desilting. Compact structure, easy for transportation and small footprint.
2. Foldable handrail and walkway, easy for assembly.
3. Fast connection for the equipment, easy for dis-assembly, saving time and labor.
4. Same cyclones process with Derrick’s and interchangeable with each other. High wear-resistance and long life span under normal service conditions (more than 3,800 hours).
5. Explosion-proof lights, safe for operation, meeting the needs of continuous construction.
Brightway Mud Recycling System Features
1. Each project and rig is different, so is the solids control. Brightway Mud Recycling System is designed and Manufactured according to the feature of Horizontal Directional Drilling Rig.
2. Group works of rig Engineering and Systems closely with rig designers, contractors, operators and shipyards can assess their unique specifications.
3. Optimum solids control programs to meet the specific cost, operational and environment requirements.
4. Strong adaptability of solid-liquid separation of different geological layers, improving the operating efficiency and saving the cost of the recycled mud.
According to different geological conditions and customers’ requirements, Brightway can design and manufacture mud recycling systems in different models to match with GD Drilling Rig.
