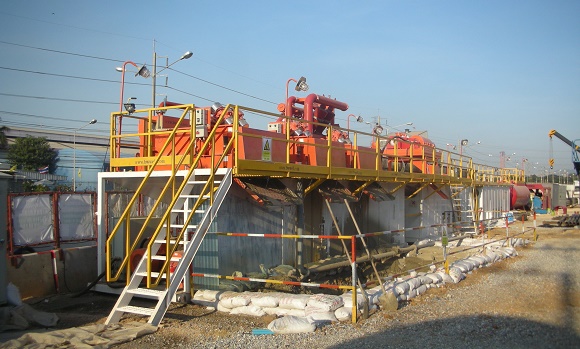

1000 GPM Mud Recycling System for HDD in Thailand
The 1000 GPM Mud Recycling System is matched with HDD rig with the capacity up to 240m3/h (1000GPM)
The 1000 GPM Mud Recycling System (2 Sets) Specifications:
2 Sets Shale Shaker, BWZS70-3P, 2X1.5 KW motor, 3 pcs of screens, filtering area of 2.1 ㎡
1 Set Mud Cleaner, BWZJ70-2S12N, the combination of desander and desilter, small foot print, and cyclones interchangeable with Derrick cyclones.
3 Sets Centrifugal Pump, BWSB8x6-13J, 55kw, spare parts interchangeable with Mission Pump’s.
9 Sets Mud Agitator, BWJBQ11, 11KW, anti-rust treatment and no corner missed in the process.
1 Set Jet Mud Mixer, BWSLH150-50, anti-rust treatment and no corner missed in the process.
6 Sets Mud Gun, BWNJQ-50, nice sealing performance of the nozzle, big jet strength.
3 Mud Tanks, 8x2.2x2.2m for one mud tank, 11×2.2×2.2m for one Recycling Tank,and 8×2.2×2.2m for one Hydration Tank.
